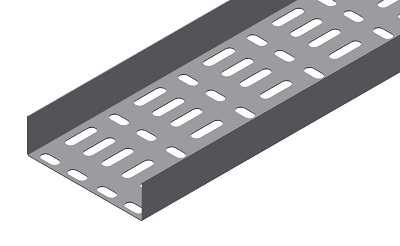

Bandeja Perforada BR2M
Características
 |
 |
Tramo 2 metros | Tramo 3 metros | |
| 60x30x2 | 60 | 30 | BR2M06302 | BR2M06303 |
| 80x30x2 | 80 | 30 | BR2M08302 | BR2M08303 |
| 100x30x2 | 100 | 30 | BR2M10302 | BR2M10303 |
| 150x30x2 | 150 | 30 | BR2M15302 | BR2M15303 |
| 200x30x2 | 200 | 30 | BR2M20302 | BR2M20303 |
| 250x30x2 | 250 | 30 | BR2M25302 | BR2M25303 |
| 300x30x2 | 300 | 30 | BR2M30302 | BR2M30303 |
| 400x30x2 | 400 | 30 | BR2M40302 | BR2M40303 |
| 500x30x2 | 500 | 30 | BR2M50302 | BR2M50303 |
| 600x30x2 | 600 | 30 | BR2M60302 | BR2M60303 |
Acabados
| PreGalvanizado | Galvanizado Caliente | Aluminio 5754 |
| PG | GC | AL |
Accesorios
| Tapa 2 metros | Tapa 3 metros | |
| 60x15x2 | TBR206152 | TBR206153 |
|---|---|---|
| 80x15x2 | TBR208152 | TBR208153 |
| 100x15x2 | TBR210152 | TBR210153 |
| 150x15x2 | TBR15152 | TBR215153 |
| 200x15x2 | TBR220152 | TBR220153 |
| 250x15x2 | TBR225152 | TBR225153 |
| 300x15x2 | TBR230152 | TBR230153 |
| 400x15x2 | TBR240152 | TBR240153 |
| 500x15x2 | TBR250152 | TBR250153 |
| 600x15x2 | TBR260152 | TBR260153 |
Sujección mediante grapa GTB (Inoxidable 304)
Ala de bandeja |
Código |
| 30 | GTB30 |

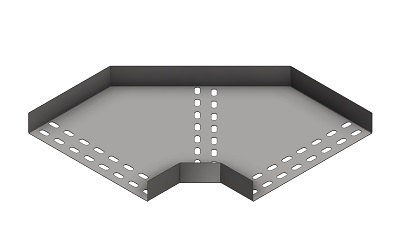

| Curva 90 | Curva 60 | Curva 45 | |
| 60x30x2 | BR2MC900630 | BR2MC600630 | BR2MC450630 |
|---|---|---|---|
| 80x30x2 | BR2MC900830 | BR2MC600830 | BR2MC450830 |
| 100x30x2 | BR2MC901030 | BR2MC601030 | BR2MC451030 |
| 150x30x2 | BR2MC901530 | BR2MC601530 | BR2MC451530 |
| 200x30x2 | BR2MC902030 | BR2MC602030 | BR2MC452030 |
| 250x30x2 | BR2MC902530 | BR2MC602530 | BR2MC452530 |
| 300x30x2 | BR2MC903030 | BR2MC603030 | BR2MC453030 |
| 400x30x2 | BR2MC904030 | BR2MC604030 | BR2MC454030 |
| 500x30x2 | BR2MC905030 | BR2MC605030 | BR2MC455030 |
| 600x30x2 | BR2MC906030 | BR2MC606030 | BR2MC456030 |
Las curvas pueden llevar tapa.
| Codo Interior | Codo Exterior | Codo Sin Pestaña | |
| 60x30x2 | BR2MCI0630 | BR2MCE0630 | BR2MCVSP06 |
|---|---|---|---|
| 80x30x2 | BR2MCI0830 | BR2MCE0830 | BR2MCVSP08 |
| 100x30x2 | BR2MCI1030 | BR2MCE1030 | BR2MCVSP10 |
| 150x30x2 | BR2MCI1530 | BR2MCE1530 | BR2MCVSP15 |
| 200x30x2 | BR2MCI2030 | BR2MCE2030 | BR2MCVSP20 |
| 250x30x2 | BR2MCI2530 | BR2MCE2530 | BR2MCVSP25 |
| 300x30x2 | BR2MCI3030 | BR2MCE3030 | BR2MCVSP30 |
| 400x30x2 | BR2MCI4030 | BR2MCE4030 | BR2MCVSP40 |
| 500x30x2 | BR2MCI5030 | BR2MCE5030 | BR2MCVSP50 |
| 600x30x2 | BR2MCI6030 | BR2MCE6030 | BR2MCVSP60 |
Las codos pueden llevar tapa.

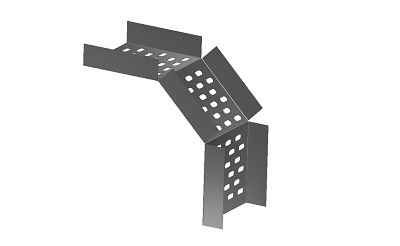

Codo Exterior

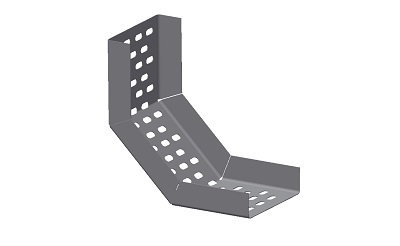

Codo Interior

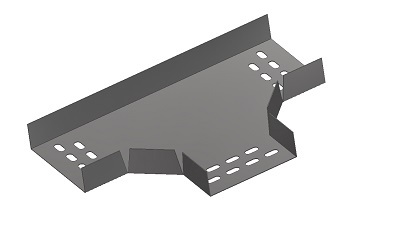

| Te | |
| 60x30x2 | BR2MT0630 |
|---|---|
| 80x30x2 | BR2MT0830 |
| 100x30x2 | BR2MT1030 |
| 150x30x2 | BR2MT1530 |
| 200x30x2 | BR2MT2030 |
| 250x30x2 | BR2MT2530 |
| 300x30x2 | BR2MT3030 |
| 400x30x2 | BR2MT4030 |
| 500x30x2 | BR2MT5030 |
| 600x30x2 | BR2MT6030 |
El accesorio TE puede llevar tapa

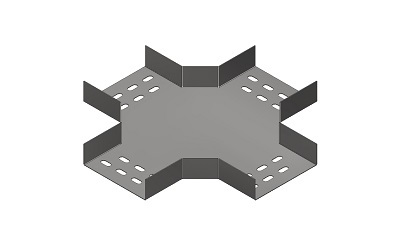

| Cruz | |
| 60x30x2 | BR2MK0630 |
|---|---|
| 80x30x2 | BR2MK0830 |
| 100x30x2 | BR2MK1030 |
| 150x30x2 | BR2MK1530 |
| 200x30x2 | BR2MK2030 |
| 250x30x2 | BR2MK2530 |
| 300x30x2 | BR2MK3030 |
| 400x30x2 | BR2MK4030 |
| 500x30x2 | BR2MK5030 |
| 600x30x2 | BR2MK6030 |
El accesorio Cruz puede llevar tapa.
| Unión | |
| Ala 30 | BG30 |
|---|---|
| - | - |
| Ala 30 | BGT30 |
BG
BGT
(para bandeja y accesorios con tapa)
| DE - A (Altura Ala) | Reduc. Izquierdas | Reduc. Centrada | Reduc. Derechas |
| 200 - 100 (30) | BR2MRI201030 | BR2MRC201030 | BR2MRD201030 |
|---|---|---|---|
| 250 - 100 (30) | BR2MRI251030 | BR2MRC251030 | BR2MRD251030 |
| 300 - 150 (30) | BR2MRI301530 | BR2MRC301530 | BR2MRD301530 |
| 300 - 250 (30) | BR2MRI302530 | BR2MRC302530 | BR2MRD302530 |
| 400 - 200 (30) | BR2MRI402030 | BR2MRC402030 | BR2MRD402030 |
| 400 - 250 (30) | BR2MRI402530 | BR2MRC402530 | BR2MRD402530 |
| 500 - 200 (30) | BR2MRI502030 | BR2MRC502030 | BR2MRD502030 |
| 500 - 300 (30) | BR2MRI503030 | BR2MRC503030 | BR2MRD503030 |
| 600 - 300 (30) | BR2MRI603030 | BR2MRC603030 | BR2MRD603030 |
| 600 - 400 (30) | BR2MRI604030 | BR2MRC604030 | BR2MRD604030 |
Las reducciones pueden llevar tapa.

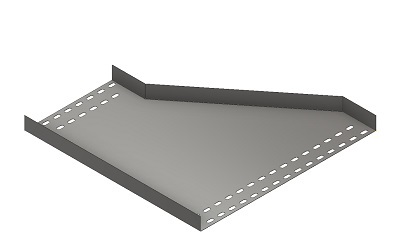

Reducción a Izquierda

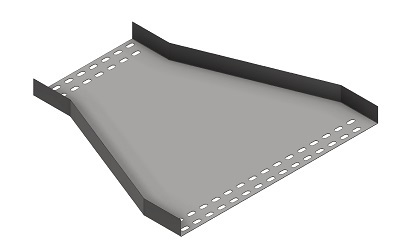

Reducción centrada

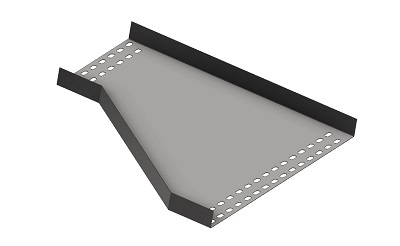

Reducción a derecha
| H | Tabique Separador |
| Ala 30 | BTS302 |
|---|
¿No encuentras lo que necesitas?
Si no encuentras la pieza o estructura que necesitas para tu trabajo en nuestro catálogo, ¡no te preocupes! También fabricamos piezas a medida que se ajusten a tus necesidades.
